7" HDMI, VGA, DVI & AV IP65 Sunlight Readable Capacitive Touchscreen LCD Small Monitor

7" IP65 Sunlight Readable Capacitive Touchscreen LCD Small Monitor with HDMI, DVI, VGA & AV Inputs
709CNH Front View - 7" IP65 Sunlight Readable Capacitive Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs 709CNH Side View - 7" IP65 Sunlight Readable Capacitive Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs 709CNH Back View - 7" IP65 Sunlight Readable Capacitive Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs
Model # 709CNH
In Stock
Mounting Option
Power Supply Option
Cable Option
Warranty
Qty
$479.00
Ship Weight 6.00 lbs
Screen Size 7 - inch
Touchscreen Capacitive
Video Input HDMI
VGA
DVI
Composite
Brightness 1000NIT
Special Feature Sunlight Readable
Waterproof
Compare product with:
Description

Expanding its product line into previously uncharted territories, Xenarc Technologies Corp. presents the first in its class small 7” direct sunlight readable, IP65 dust/splash proof, capacitive touchscreen monitor display with built-in waterproof speaker.  The 1,000 NIT rated brightness of this water and dust resistant 7" small monitor makes it ideal for tough outdoor applications under direct sunlight, and also protects from environmental hazards with its IP65 certified casing.  This unit is available in a 10.1" version in the 1029CNH.

The 709CNH offers all of the innovation and inputs as our 700 series models along with a Capacitive touchscreen panel.  Capacitive sensing provides a more responsive touch interface than resistive touch.  It achieves this by using the capacitance of human skin to detect the proximity or position of the input.  Proximity sensing allows the touch interaction to work even if protective glass or coating is used over the display.  The IP65 rating on the display provides for protection against solid objects and liquids.  This 7" Monitor is guaranteed to prevent any amount of dust from entering the device, making it completely dust proof.  Further, it is guaranteed to protect from water projected from a nozzle from having any harmful effect.

Why do our products outlast others in extreme conditions? Why do our products have a wider temperature range and a wider voltage input range? It is because our mission is to offer our customers the best products for any situation. By utilizing high grade industrial components, this 7" Touchscreen is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required, including but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production
Features
  • IP65 / NEMA4 Rated Water and Dust Resistance (Whole Unit)
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • Projected Capacitive Multi-Touch Touchscreen (USB)
  • Anti-Reflective and Anti-Fingerprint Coating
  • Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • Audio Input x 3 / Built-In Waterproof Speaker
  • 1024x600 Native Resolution, 16x9 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand
  • VESA 50mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 10V DC ~ 35V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS, REACH, ECE R118-03 Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee

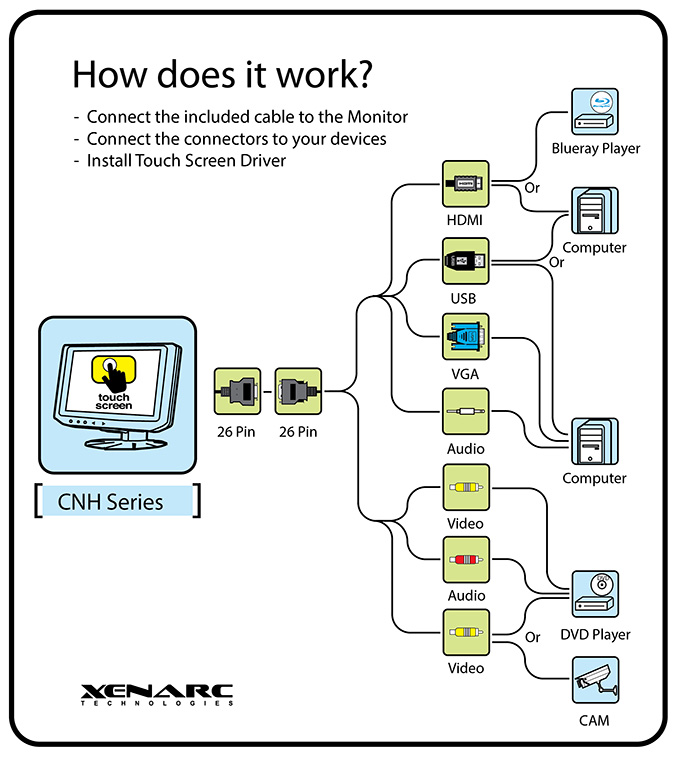

Function Diagram
7" IP65 Sunlight Readable Capacitive Touchscreen LCD Small Monitor with HDMI, DVI, VGA & AV Inputs
Package Contents
  • Copper Monitor Stand
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB or 2 Feet Cable with only VGA & USB or 5 Meter Cable with only HDMI & USB
Specification
  • Screen Size: Diagonal 7"  (16:9)
  • Physical Resolution: 1024 (H)  x 600 (V) WXGA
  • Supported Resolution: 640 x 480 ~ 1920 x 1080
  • Dot Resolution: 3072 x 600 = 1,843,200 (dots)
  • Brightness: 1000 cd/m²
  • Contrast Ratio: 700:1
  • Viewing Angle: 150° Horizontal, 145° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 10V ~ 35V
  • Power Supply: DC 12V
  • Power Consumption: ≤ 10W
  • Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
  • Dimension (mm): 205.2W x 139.5H x 28.7D
  • Weight (lb): 2.64

Expanding its product line into previously uncharted territories, Xenarc Technologies Corp. presents the first in its class small 7” direct sunlight readable, IP65 dust/splash proof, capacitive touchscreen monitor display with built-in waterproof speaker.  The 1,000 NIT rated brightness of this water and dust resistant 7" small monitor makes it ideal for tough outdoor applications under direct sunlight, and also protects from environmental hazards with its IP65 certified casing.  This unit is available in a 10.1" version in the 1029CNH.

The 709CNH offers all of the innovation and inputs as our 700 series models along with a Capacitive touchscreen panel.  Capacitive sensing provides a more responsive touch interface than resistive touch.  It achieves this by using the capacitance of human skin to detect the proximity or position of the input.  Proximity sensing allows the touch interaction to work even if protective glass or coating is used over the display.  The IP65 rating on the display provides for protection against solid objects and liquids.  This 7" Monitor is guaranteed to prevent any amount of dust from entering the device, making it completely dust proof.  Further, it is guaranteed to protect from water projected from a nozzle from having any harmful effect.

Why do our products outlast others in extreme conditions? Why do our products have a wider temperature range and a wider voltage input range? It is because our mission is to offer our customers the best products for any situation. By utilizing high grade industrial components, this 7" Touchscreen is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required, including but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production
  • IP65 / NEMA4 Rated Water and Dust Resistance (Whole Unit)
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • Projected Capacitive Multi-Touch Touchscreen (USB)
  • Anti-Reflective and Anti-Fingerprint Coating
  • Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • Audio Input x 3 / Built-In Waterproof Speaker
  • 1024x600 Native Resolution, 16x9 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand
  • VESA 50mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 10V DC ~ 35V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS, REACH, ECE R118-03 Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee
7" IP65 Sunlight Readable Capacitive Touchscreen LCD Small Monitor with HDMI, DVI, VGA & AV Inputs
  • Copper Monitor Stand
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB or 2 Feet Cable with only VGA & USB or 5 Meter Cable with only HDMI & USB
  • Screen Size: Diagonal 7"  (16:9)
  • Physical Resolution: 1024 (H)  x 600 (V) WXGA
  • Supported Resolution: 640 x 480 ~ 1920 x 1080
  • Dot Resolution: 3072 x 600 = 1,843,200 (dots)
  • Brightness: 1000 cd/m²
  • Contrast Ratio: 700:1
  • Viewing Angle: 150° Horizontal, 145° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 10V ~ 35V
  • Power Supply: DC 12V
  • Power Consumption: ≤ 10W
  • Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
  • Dimension (mm): 205.2W x 139.5H x 28.7D
  • Weight (lb): 2.64
: *
: *
: *
