Small 7" Capacitive Touchscreen LCD HDMI, DVI, VGA & AV Display Monitor

NOTE: This 7" Monitor is now special order only.  For something readily available without MOQ, please take a look at the Sunlight Reable counterpart 702CSH.

Xenarc Technologies Corp. extended the versatility of its iconic 700 series line of industrial rugged small touchscreen monitor solutions with the introduction of a 7" LED LCD screen with HDMI input and Capacitive Touchscreen. This advanced industrial rugged display unit uses the latest 7" LCD Panel with a 1024x600 native resolution while incorporating our latest LED backlight technology for increased brightness and an ambient light sensor which dims the backlight automatically when required. In addition, Chip Monolithic Ceramic Capacitors are used throughout the industrial display unit for improved stability and durability especially in extreme temperature environments.  This industrial touch screen unit is available in a 600NIT direct sunlight readable version as the 702CSH.  It is also available in an Optically Bonded 1000NIT direct sunlight readable version as the 702GSH.

This versatile rack mount open frame industrial display incorporates the innovation of our HDMI 7" small monitor modules along with a Capacitive Touch-Screen panel. Capacitive sensing provides a more responsive touch interface than resistive touch.  It achieves this by using the capacitance of human skin to detect the proximity or position of the input.  Proximity sensing allows the touch interface to work even if protective glass or coating is used over the display.  Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The industrial-grade touch screen utilizes the USB port as the interface. You can connect several 700CSH industrial-grade monitors to your computer and the touchscreens would work simultaneously through the multi-monitor support.  Our Industrial displays are designed for applications such as but not limited to:

• Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
• System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
• Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
• Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
• Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production

NOTE: This 7" Monitor is now special order only.  For something readily available without MOQ, please take a look at the Sunlight Reable counterpart 702CSH.

• 600NIT High Brightness Long Life LED Backlight
• Automatic Backlight Adjustment through Built-in Ambient Light Sensor
• Projected Capacitive Multi-Touch Touchscreen (USB)
• Anti-Glare Coating
• Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
• Multi-Monitor Touchscreen Support

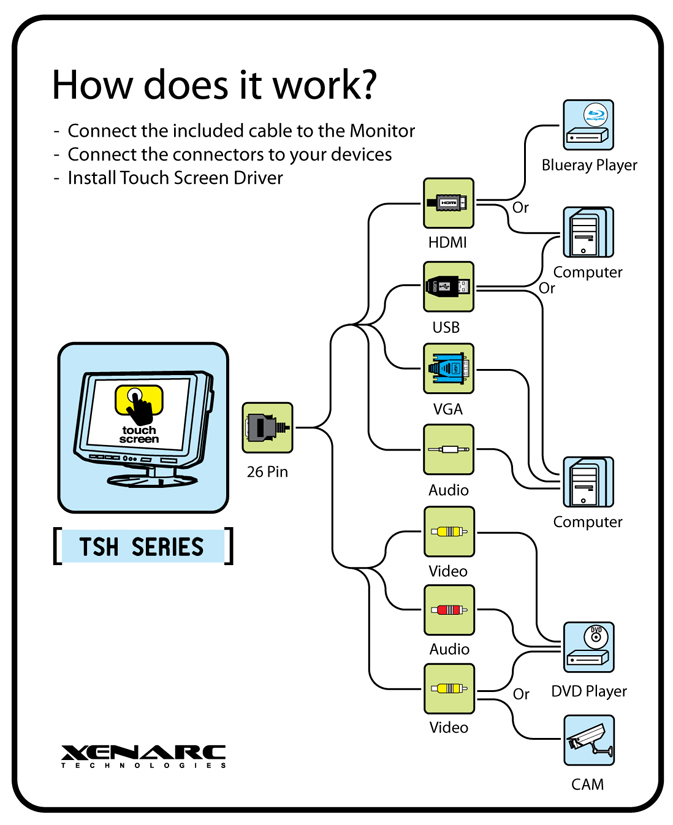

• HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• DVI Input through included DVI to HDMI Adaptor
• Audio Input x 3 / Built-In Speaker
• 1024x600 Native Resolution, 16x9 Aspect Ratio
• Solid Capacitors for Improved Durability
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input and Power Setting Memory
• IR Remote Control
• Auto Power-On upon signal detection
• Mirror and Vertical Image Flip
• Function to Disable Front Button(s) and On Screen Text
• AV2 Auto Switching for Backup Camera
• 360° Copper Monitor Stand
• VESA 50mm Mounting Holes
• 26-Pin Heavy-Duty Connector with Connector Locking
• Supports 10V DC ~ 35V DC
• "E" Mark Certified for Automotive use
• FCC, CE, E13 Certification
• ROHS, REACH, ECE R118-03 Compliant
• 36 Month/3 Year Warranty
• 30 Day No dead Pixel Guarantee

• Monitor Stand
• AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
• 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB or 2 Feet Cable with only VGA & USB or 5 Meter Cable with only HDMI & USB

NOTE: This 7" Monitor is now special order only.  For something readily available without MOQ, please take a look at the Sunlight Reable counterpart 702CSH.

• Screen Size: Diagonal 7"  (16:9)
• Physical Resolution: 1024 (H)  x 600 (V) WVGA
• Supported PC Resolution: 640 x 480 ~ 1920 x 1080
• Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080p
• Dot Resolution: 3072 x 600 = 1,843,200 (dots)
• Brightness: 600 cd/m²
• Contrast Ratio: 700:1
• Viewing Angle: 150° Horizontal, 145° Vertical
• Response Time (Tr/Tf): 10/15ms (Typ.)
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 10V ~ 35V
• Power Supply: DC 12V
• Power Consumption: < 10W
• Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
• Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 196W x 121.5H x 35D
• Weight (lb): 1.54

NOTE: This 7" Monitor is now special order only.  For something readily available without MOQ, please take a look at the Sunlight Reable counterpart 702CSH.

Xenarc Technologies Corp. extended the versatility of its iconic 700 series line of industrial rugged small touchscreen monitor solutions with the introduction of a 7" LED LCD screen with HDMI input and Capacitive Touchscreen. This advanced industrial rugged display unit uses the latest 7" LCD Panel with a 1024x600 native resolution while incorporating our latest LED backlight technology for increased brightness and an ambient light sensor which dims the backlight automatically when required. In addition, Chip Monolithic Ceramic Capacitors are used throughout the industrial display unit for improved stability and durability especially in extreme temperature environments.  This industrial touch screen unit is available in a 600NIT direct sunlight readable version as the 702CSH.  It is also available in an Optically Bonded 1000NIT direct sunlight readable version as the 702GSH.

This versatile rack mount open frame industrial display incorporates the innovation of our HDMI 7" small monitor modules along with a Capacitive Touch-Screen panel. Capacitive sensing provides a more responsive touch interface than resistive touch.  It achieves this by using the capacitance of human skin to detect the proximity or position of the input.  Proximity sensing allows the touch interface to work even if protective glass or coating is used over the display.  Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The industrial-grade touch screen utilizes the USB port as the interface. You can connect several 700CSH industrial-grade monitors to your computer and the touchscreens would work simultaneously through the multi-monitor support.  Our Industrial displays are designed for applications such as but not limited to:

• Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
• System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
• Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
• Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
• Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production

NOTE: This 7" Monitor is now special order only.  For something readily available without MOQ, please take a look at the Sunlight Reable counterpart 702CSH.

• 600NIT High Brightness Long Life LED Backlight
• Automatic Backlight Adjustment through Built-in Ambient Light Sensor
• Projected Capacitive Multi-Touch Touchscreen (USB)
• Anti-Glare Coating
• Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
• Multi-Monitor Touchscreen Support
• HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• DVI Input through included DVI to HDMI Adaptor
• Audio Input x 3 / Built-In Speaker
• 1024x600 Native Resolution, 16x9 Aspect Ratio
• Solid Capacitors for Improved Durability
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input and Power Setting Memory
• IR Remote Control
• Auto Power-On upon signal detection
• Mirror and Vertical Image Flip
• Function to Disable Front Button(s) and On Screen Text
• AV2 Auto Switching for Backup Camera
• 360° Copper Monitor Stand
• VESA 50mm Mounting Holes
• 26-Pin Heavy-Duty Connector with Connector Locking
• Supports 10V DC ~ 35V DC
• "E" Mark Certified for Automotive use
• FCC, CE, E13 Certification
• ROHS, REACH, ECE R118-03 Compliant
• 36 Month/3 Year Warranty
• 30 Day No dead Pixel Guarantee

• Monitor Stand
• AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
• 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB or 2 Feet Cable with only VGA & USB or 5 Meter Cable with only HDMI & USB

NOTE: This 7" Monitor is now special order only.  For something readily available without MOQ, please take a look at the Sunlight Reable counterpart 702CSH.

• Screen Size: Diagonal 7"  (16:9)
• Physical Resolution: 1024 (H)  x 600 (V) WVGA
• Supported PC Resolution: 640 x 480 ~ 1920 x 1080
• Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080p
• Dot Resolution: 3072 x 600 = 1,843,200 (dots)
• Brightness: 600 cd/m²
• Contrast Ratio: 700:1
• Viewing Angle: 150° Horizontal, 145° Vertical
• Response Time (Tr/Tf): 10/15ms (Typ.)
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 10V ~ 35V
• Power Supply: DC 12V
• Power Consumption: < 10W
• Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
• Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 196W x 121.5H x 35D
• Weight (lb): 1.54
