7" Touchscreen LCD Display Monitor with HDMI, DVI, VGA & AV Video Inputs

7" Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs
www.xenarc.com 7" touchscreens; 7 inch HDMI Monitor, 7 inch DVI monitor, 7 inch VGA monitor, 7 inch display monitor, 7" Touchscreen LED LCD Monitor with USB Display Interface & AV Inputs, 7 inch lcd led monitor display touch screen; 7" touchscreens; 7 inch HDMI Monitor, 7 inch DVI monitor, 7 inch VGA monitor, 7 inch display monitor, 7" Touchscreen LED LCD Monitor with USB Display Interface & AV Inputs, 7 inch lcd led monitor display touch screen; 7" touchscreens; 7 inch HDMI Monitor, 7 inch DVI monitor, 7 inch VGA monitor, 7 inch display monitor, 7" Touchscreen LED LCD Monitor with USB Display Interface & AV Inputs, 7 inch lcd led monitor display touch screen;
Description

Xenarc Technologies Corp. is the leading manufacturer of  7" touchscreens display monitors also knows as 7" LED LCD HMIs screen panels with HDMI Video Signal input and an advanced 7 inch touch panel. This 7" touchscreen display monitor unit incorporates our latest LED backlight technology for increased brightness and has an ambient light sensor which dims the backlight automatically when required. In addition, Chip Monolithic Ceramic Capacitors are used throughout the unit for improved stability and durability especially in extreme temperature conditions and perform excellent in harsh industrial evnvironments.  This 7" HDMI, DVI, VGA video display monitor is available with a Capacitive 7" Touchscreen with model# 700CSH.  It is also available without Touch Screen as the 700YH.

The 7" Touchscreen Monitor is a versatile small form factor display product that incorporates the innovation of our HDMI video 7" touchscreen models along with a 5-wire resistive Touch-Screen panel. Use the convenient 7 inch touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The 7" dispaly touch screen utilizes the USB port as the interface. You can connect several 700TSH 7" touchscreen monitors to your computer and the touchscreens would work simultaneously through the multi-monitor support.  Our Rugged heavy duty 7 inch HMIs displays are designed for applications such as but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IIoT, Industry 4.0, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
Features
  • 600NIT High Brightness Long Life LED Backlight
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • 5-Wire Resistive Touchscreen (USB)
  • Anti-Glare Coating
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • Audio Input x 3 / Built-In Speaker
  • 1024x600 Native Resolution, 16x9 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand
  • VESA 50mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Supports 10V DC ~ 35V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee

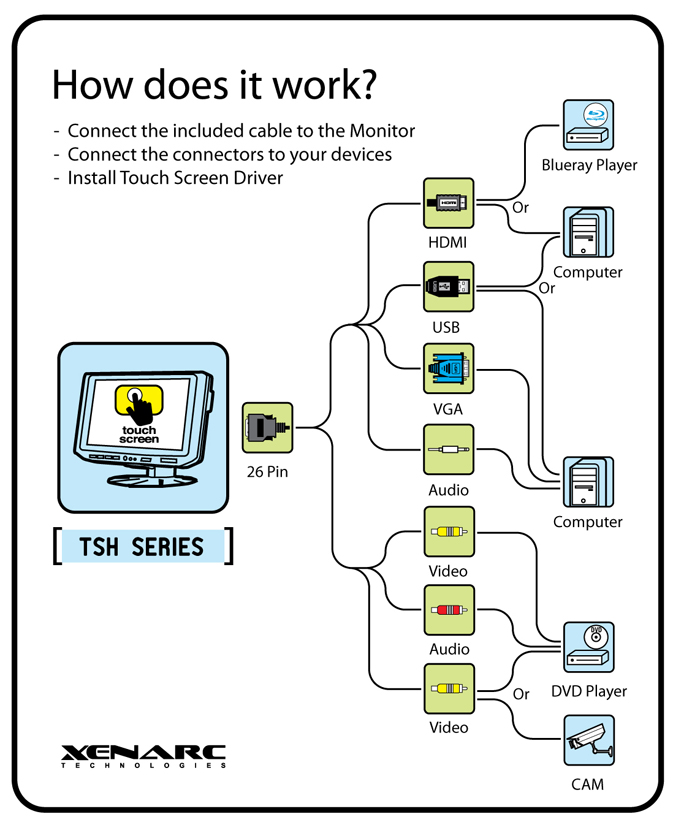

Function Diagram
7" Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs
Package Contents
  • Copper Monitor Stand
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB,or 2 Feet Cable with only VGA & USB
  • Optional Stylus
Specification
  • Screen Size:  Diagonal 7"  (16:9)
  • Physical Resolution: 1024 (H)  x 600 (V) WVGA
  • Supported PC Resolution:  640 x 480 ~ 1920 x 1080
  • Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080p
  • Dot Resolution: 3072 x 600 = 1,843,200 (dots)
  • Brightness: 600 cd/m²
  • Contrast Ratio: 700:1
  • Viewing Angle: 150° Horizontal, 145° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 10V ~ 35V
  • Power Supply: DC 12V
  • Power Consumption:  < 10W
  • Operating Temperature:  -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature:  -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours
  • Dimension (mm):  196W x 121.5H x 35D
  • Weight (lb):  1.54

Xenarc Technologies Corp. is the leading manufacturer of  7" touchscreens display monitors also knows as 7" LED LCD HMIs screen panels with HDMI Video Signal input and an advanced 7 inch touch panel. This 7" touchscreen display monitor unit incorporates our latest LED backlight technology for increased brightness and has an ambient light sensor which dims the backlight automatically when required. In addition, Chip Monolithic Ceramic Capacitors are used throughout the unit for improved stability and durability especially in extreme temperature conditions and perform excellent in harsh industrial evnvironments.  This 7" HDMI, DVI, VGA video display monitor is available with a Capacitive 7" Touchscreen with model# 700CSH.  It is also available without Touch Screen as the 700YH.

The 7" Touchscreen Monitor is a versatile small form factor display product that incorporates the innovation of our HDMI video 7" touchscreen models along with a 5-wire resistive Touch-Screen panel. Use the convenient 7 inch touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The 7" dispaly touch screen utilizes the USB port as the interface. You can connect several 700TSH 7" touchscreen monitors to your computer and the touchscreens would work simultaneously through the multi-monitor support.  Our Rugged heavy duty 7 inch HMIs displays are designed for applications such as but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IIoT, Industry 4.0, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • 600NIT High Brightness Long Life LED Backlight
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • 5-Wire Resistive Touchscreen (USB)
  • Anti-Glare Coating
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • Audio Input x 3 / Built-In Speaker
  • 1024x600 Native Resolution, 16x9 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand
  • VESA 50mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Supports 10V DC ~ 35V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee
7" Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs
  • Copper Monitor Stand
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB,or 2 Feet Cable with only VGA & USB
  • Optional Stylus
  • Screen Size:  Diagonal 7"  (16:9)
  • Physical Resolution: 1024 (H)  x 600 (V) WVGA
  • Supported PC Resolution:  640 x 480 ~ 1920 x 1080
  • Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080p
  • Dot Resolution: 3072 x 600 = 1,843,200 (dots)
  • Brightness: 600 cd/m²
  • Contrast Ratio: 700:1
  • Viewing Angle: 150° Horizontal, 145° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 10V ~ 35V
  • Power Supply: DC 12V
  • Power Consumption:  < 10W
  • Operating Temperature:  -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature:  -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours
  • Dimension (mm):  196W x 121.5H x 35D
  • Weight (lb):  1.54
: *
: *
: *


Product rating

Sign in to rate

Customer Reviews

There have been no reviews for this product.
Model # 700TSH
In Stock
Power Supply Option
Cable Option
Optional Stylus
Headrest Shroud
Warranty
Qty
$299.00 (257.14)
Ship Weight 5.00 lbs
Screen Size 7 - inch
Touchscreen 5W Resistive
Video Input HDMI
VGA
DVI
Composite
Brightness 500NIT
Special Feature
