8" Sunlight Readable LCD Display Monitor with HDMI, DVI, VGA & AV Inputs

8" Sunlight Readable LCD Display Monitor with HDMI, DVI, VGA & AV Inputs
802YH with U-Stand Front View - 8" Sunlight Readable GFG Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs 802YH with Universal Copper Stand Front View - 8" Sunlight Readable LCD Monitor with HDMI, DVI, VGA & AV Inputs 802YH with U-Stand Side View - 8" Sunlight Readable LCD Monitor with HDMI, DVI, VGA & AV Inputs 802YH with Universal Copper Stand Side View - 8" Sunlight Readable LCD Display Monitor with HDMI, DVI, VGA & AV Inputs 802YH with Universal Copper Stand Back View - 8" Sunlight Readable LCD Display Monitor with HDMI, DVI, VGA & AV Inputs
Model # 802YH
Out of stock
Mounting Option
Power Supply Option
Cable Option
Warranty
No items available
$399.00
Ship Weight 7.00 lbs
Screen Size 8 - inch
Touchscreen Non-Touch
Video Input HDMI
VGA
Composite
Brightness 1000NIT
Special Feature Sunlight Readable
Compare product with:
Description

NOTE: This 8" Monitor is now special order only.  For something readily available without MOQ, please take a look at the touchscreen counterpart 802TSH.

In a follow up of the 800 series and the 805 series, Xenarc Technologies Corp. added to its 8" line of displays with the introduction of an 8" LED LCD display with a brightness rating of 1,000NIT.  The high brightness of this monitor, as well as the ruggedized aluminum casing, makes it ideal for outdoor applications.  This 8" inch outdoor display unit is available with advanced Touch Screen technology as the 802TSH.

This rugged and versatile 8" display product offers superior readability under direct sunlight.  With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 500:1.  Sunlight readability is further enhanced by it's advanced Anti-Reflective coating on the display screen.

The brushed, anodized aluminum face plate gives the 8" inch display monitor a modern yet elegant look. The entire enclosure is constructed with aluminum, making the unit strong and ruggedized perfect for those harsh industrial factory or outdoor environments.

Why do our 8" display products outlast others at extreme environments? Why do our 8" inch display solutions have wider temperature range and wider voltage input range? It is because our mission is to offer our customers the best in display solutions. By utilizing high grade components, this 8" display monitor is perfect for industrial, automotive computing applications or any other applications where a small form factor, durable display is required and necessary.  Our 8" LCD LED Displays are designed for applications such as but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production
Features

NOTE: This 8" Monitor is now special order only.  For something readily available without MOQ, please take a look at the touchscreen counterpart 802TSH.

  • 1000NIT Sunlight Readable with Long Life LED Backlight
  • Adjustable LED Backlight for nighttime use
  • Anti-Glare Coating
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • 800x600 Native Resolution, 4x3 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand or U-Shape Mount
  • VESA 75mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 9V DC ~ 36V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS, REACH, ECE R118-03 Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee

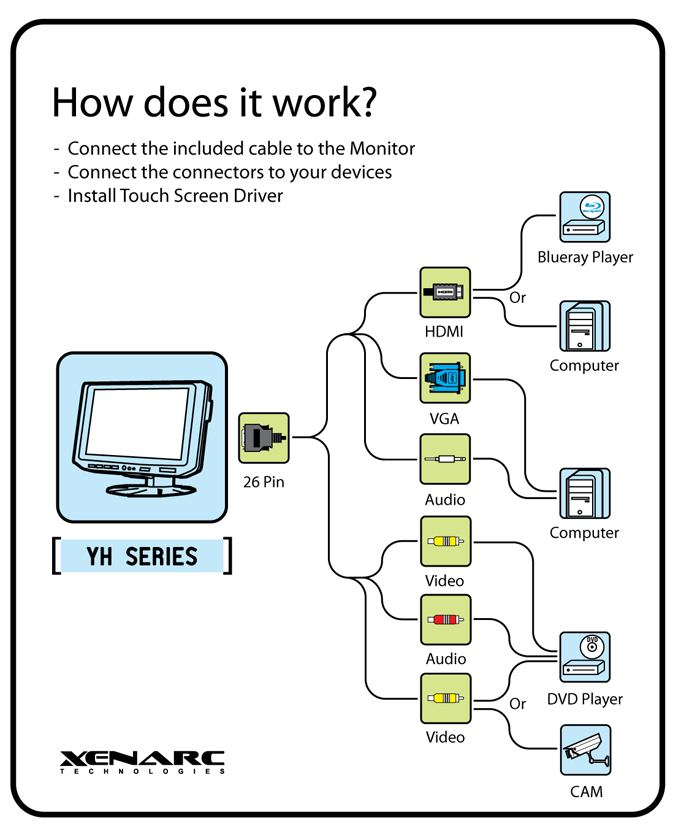

Function Diagram
8" Sunlight Readable LCD Display Monitor with HDMI, DVI, VGA & AV Inputs
Package Contents
  • Copper Monitor Stand or U-Shape Mount
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI or 5 Meter Cable with only HDMI & USB
Specification

NOTE: This 8" Monitor is now special order only.  For something readily available without MOQ, please take a look at the touchscreen counterpart 802TSH.

  • Screen Size:  Diagonal 8"  (4:3)
  • Physical Resolution: 800 (H)  x 600 (V) SVGA
  • Supported Resolution:  640 x 480 ~ 1600 x 1200
  • Dot Resolution: 2400 x 600 = 1,440,000 (dots)
  • LCD Brightness: 1,000 cd/m²
  • Contrast Ratio: 500:1
  • Viewing Angle: 140° Horizontal, 120° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 9V ~ 36V
  • Power Supply: DC 12V
  • Power Consumption:  < 14W
  • Operating Temperature:  -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature:  -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
  • Dimension (mm):  228W x 164H x 36D
  • Weight (lb):  2.64

NOTE: This 8" Monitor is now special order only.  For something readily available without MOQ, please take a look at the touchscreen counterpart 802TSH.

In a follow up of the 800 series and the 805 series, Xenarc Technologies Corp. added to its 8" line of displays with the introduction of an 8" LED LCD display with a brightness rating of 1,000NIT.  The high brightness of this monitor, as well as the ruggedized aluminum casing, makes it ideal for outdoor applications.  This 8" inch outdoor display unit is available with advanced Touch Screen technology as the 802TSH.

This rugged and versatile 8" display product offers superior readability under direct sunlight.  With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 500:1.  Sunlight readability is further enhanced by it's advanced Anti-Reflective coating on the display screen.

The brushed, anodized aluminum face plate gives the 8" inch display monitor a modern yet elegant look. The entire enclosure is constructed with aluminum, making the unit strong and ruggedized perfect for those harsh industrial factory or outdoor environments.

Why do our 8" display products outlast others at extreme environments? Why do our 8" inch display solutions have wider temperature range and wider voltage input range? It is because our mission is to offer our customers the best in display solutions. By utilizing high grade components, this 8" display monitor is perfect for industrial, automotive computing applications or any other applications where a small form factor, durable display is required and necessary.  Our 8" LCD LED Displays are designed for applications such as but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production

NOTE: This 8" Monitor is now special order only.  For something readily available without MOQ, please take a look at the touchscreen counterpart 802TSH.

  • 1000NIT Sunlight Readable with Long Life LED Backlight
  • Adjustable LED Backlight for nighttime use
  • Anti-Glare Coating
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • 800x600 Native Resolution, 4x3 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand or U-Shape Mount
  • VESA 75mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 9V DC ~ 36V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS, REACH, ECE R118-03 Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee
8" Sunlight Readable LCD Display Monitor with HDMI, DVI, VGA & AV Inputs
  • Copper Monitor Stand or U-Shape Mount
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI or 5 Meter Cable with only HDMI & USB

NOTE: This 8" Monitor is now special order only.  For something readily available without MOQ, please take a look at the touchscreen counterpart 802TSH.

  • Screen Size:  Diagonal 8"  (4:3)
  • Physical Resolution: 800 (H)  x 600 (V) SVGA
  • Supported Resolution:  640 x 480 ~ 1600 x 1200
  • Dot Resolution: 2400 x 600 = 1,440,000 (dots)
  • LCD Brightness: 1,000 cd/m²
  • Contrast Ratio: 500:1
  • Viewing Angle: 140° Horizontal, 120° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 9V ~ 36V
  • Power Supply: DC 12V
  • Power Consumption:  < 14W
  • Operating Temperature:  -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature:  -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
  • Dimension (mm):  228W x 164H x 36D
  • Weight (lb):  2.64
: *
: *
: *
